Transfer Driven Gear: Assembly

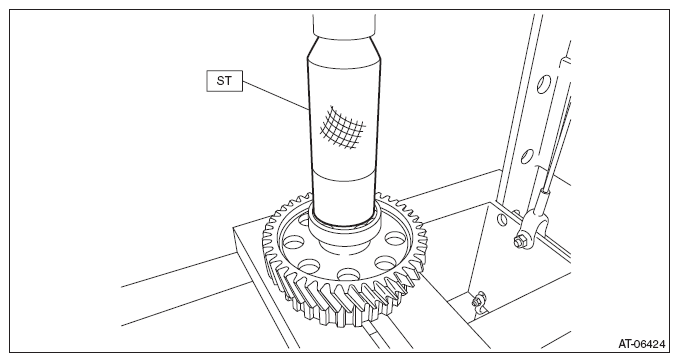

Using the ST and a press, press-fit a new ball bearing.
NOTE: Apply CVTF to the ball bearing.

Preparation tool:

ST: INSTALLER (899580100)

Courtesy of SUBARU OF AMERICA, INC.
