Transfer Driven Gear: Disassembly

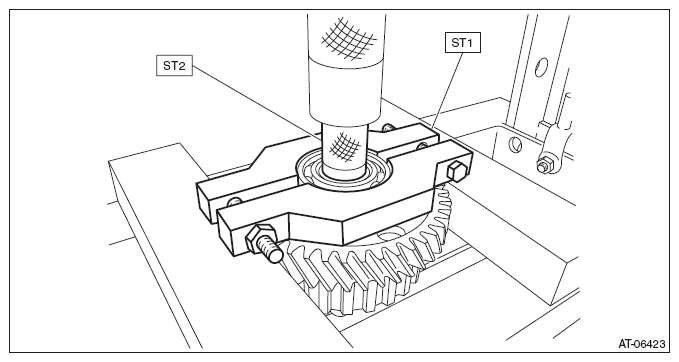

  1. Remove the ball bearing using ST1, ST2 and a press.

    Preparation tool:

    ST1: REMOVER (498077400)

    ST2: REMOVER (899864100)

    G08317926Courtesy of SUBARU OF AMERICA, INC.
