Fuel Pump Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

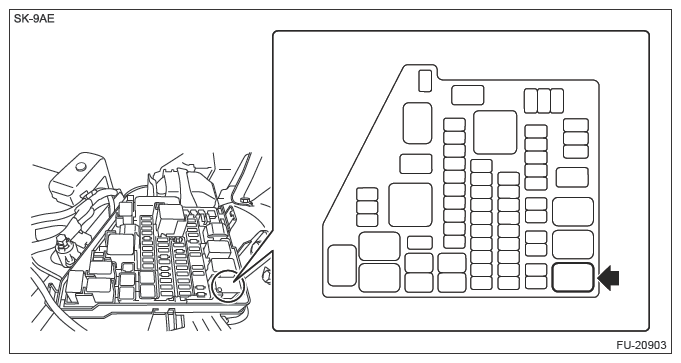

  2. Remove the fuel pump relay from the main fuse box.
G13223997Courtesy of SUBARU OF AMERICA, INC.
