Outback Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the spoiler assembly roof CTR. Ref. to EXTERIOR/INTERIOR TRIM>ROOF SPOILER>REMOVAL .

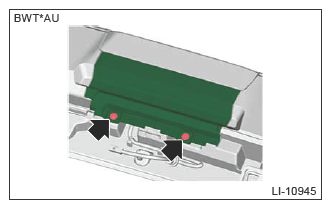

  3. Remove the screws and remove the spoiler CTR cover.
    G13951974Courtesy of SUBARU OF AMERICA, INC.

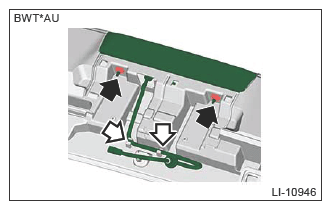

  4. Remove the light assembly high-mounted.
    1. Remove the harness from the harness clamp.
    2. Remove the nuts and remove the light assembly high-mounted.
G13951975Courtesy of SUBARU OF AMERICA, INC.
