Reduction Drive Gear: Removal

  1. Remove the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CASE>REMOVAL .

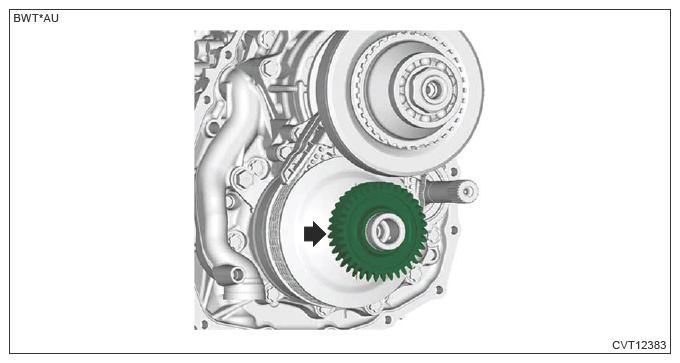

  2. Remove the reduction drive gear.
    G13950707Courtesy of SUBARU OF AMERICA, INC.
