Transfer Clutch: Removal

  1. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>REMOVAL .

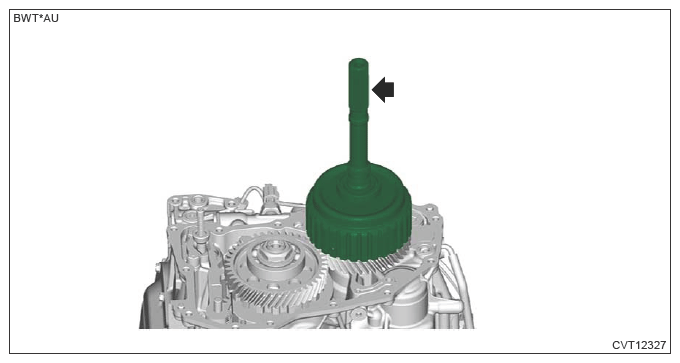

  2. Remove the rear drive shaft.
    G13950604Courtesy of SUBARU OF AMERICA, INC.

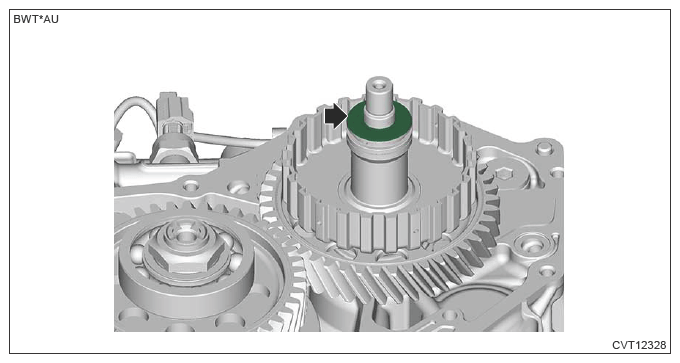

  3. Remove the thrust bearing.
    G13950605Courtesy of SUBARU OF AMERICA, INC.

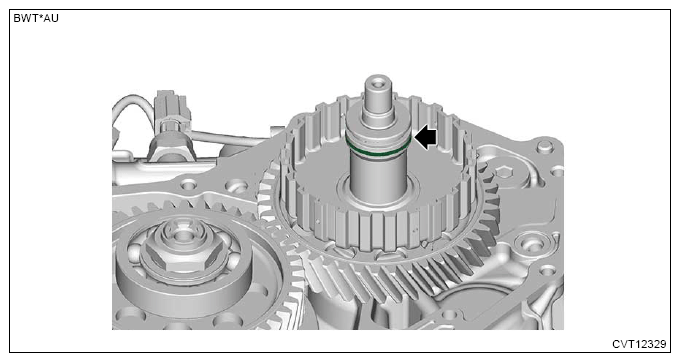

  4. Remove the seal rings.
    G13950606Courtesy of SUBARU OF AMERICA, INC.
