EyeSight Assist Monitor: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

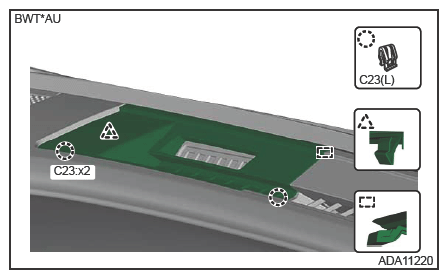

2. Remove the cover assembly EyeSight monitor.
   1. Release the clips and claws.
   2. Release the hook, and remove the cover assembly EyeSight monitor.

   Courtesy of SUBARU OF AMERICA, INC.

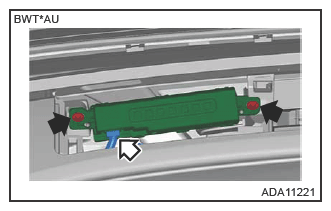

3. Remove the EyeSight assist monitor.

1. Remove the screws.
2. Disconnect the connector and remove the EyeSight assist monitor.

Courtesy of SUBARU OF AMERICA, INC.
