•Outback Model

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .
Remove the front view camera assembly.
CAUTION: Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

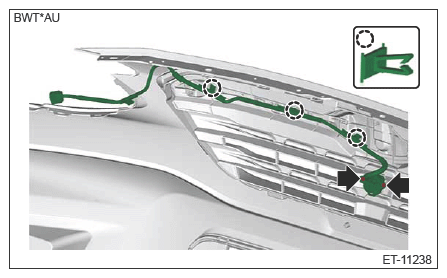

1. Remove the cable clamps.
2. Remove the screws and remove the front view camera assembly.

Courtesy of SUBARU OF AMERICA, INC.
