Fuse Reset

  1. Park the vehicle on a level ground.
  2. Turn the ignition switch to OFF and remove the delivery mode fuse from the position (1).
  3. Install the delivery mode fuse in the position (2) and then turn the ignition switch to ON.
  4. Turn the ignition switch to OFF, install the delivery mode fuse in the position (1), and start the engine.

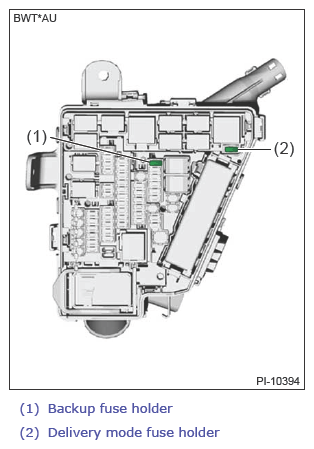

G13951908Courtesy of SUBARU OF AMERICA, INC.
