Door Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the door switch assembly.

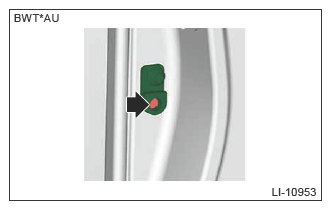

    1. Remove the bolts, and pull out the door switch assembly toward you.
      G13951995Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the door switch assembly.
