Fog Light Aiming

  1. Before checking the fog light beam level, be sure of the following:
    • Check the area around the fog light for any scratches, damage or other type of deformation.
    • The vehicle is parked on a level surface.
    • The inflation pressure of tires is correct.
    • The vehicle does not have load.
    • Vehicle's fuel tank is fully filled.
  2. Bounce the vehicle several times to normalize the suspension.
  3. Make certain that someone is seated in the driver's seat.
  4. Place the vehicle with the front end facing to the measurement panel.
    G13951935Courtesy of SUBARU OF AMERICA, INC.
    h mm (in) at 3 m (10 ft)
    40 (1.57)
  5. Adjust the fog light beam.

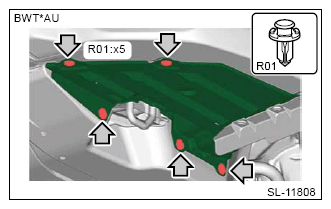

    1. Remove the clips, and turn over the mud guard front.
      G13951936Courtesy of SUBARU OF AMERICA, INC.
    2. Adjust the beam level by turning the aiming screw.
      • Sedan model
        G13951937Courtesy of SUBARU OF AMERICA, INC.
      • OUTBACK model
      G13951938Courtesy of SUBARU OF AMERICA, INC.
    3. Install the mud guard front.

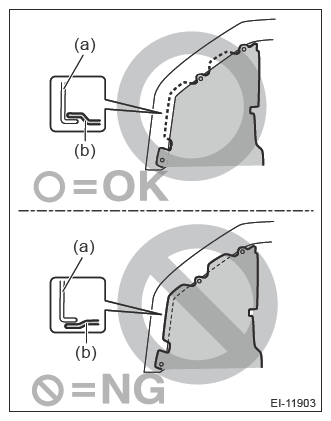

NOTE: Install the mud guard so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).
G13951939Courtesy of SUBARU OF AMERICA, INC.
