Front Fog Light Assembly: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Lift up the vehicle.

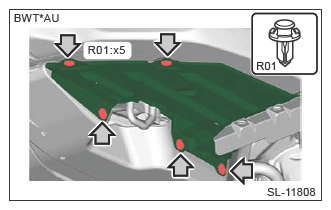

3. Remove the clips, and turn over the mud guard front.

   Courtesy of SUBARU OF AMERICA, INC.

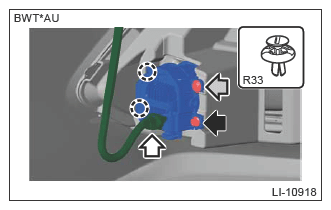

4. Remove the fog light assembly front.
   1. Disconnect the connector.
   2. Remove the bolt and clip.
   3. Remove the fog light assembly front from the guide. (Sedan model)

      Courtesy of SUBARU OF AMERICA, INC.

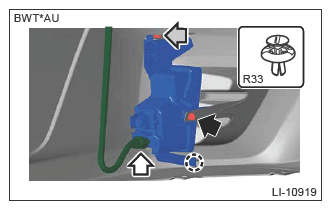

   4. Release the claws, and remove the fog light assembly front. (OUTBACK model)

Courtesy of SUBARU OF AMERICA, INC.
