Sedan Model
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
- Remove the light assembly finisher rear.
- Disconnect the connector.

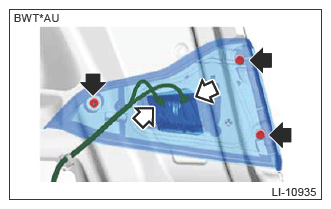

- Remove the nuts and remove the light assembly finisher rear.NOTE: The illustration shows the model with tail light. For the model without tail light, perform the procedure by referring to the illustration below.
