Combination Switch (Wiper): Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
3. Remove the switch assembly combination wiper.
   1. Disconnect the connector.

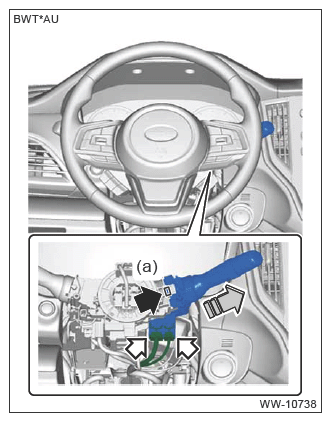

   2. Press the claws (a), and pull out the switch assembly combination wiper.
      CAUTION: Do not press the claws with excessive force. They may be damaged.

Courtesy of SUBARU OF AMERICA, INC.
