Door Inner Remote: Removal: Front

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .

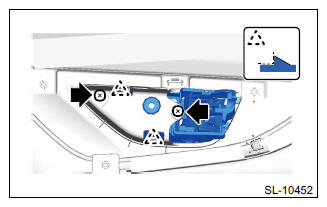

  3. Remove the remote assembly door.
    1. Remove the screws.
    2. Release the claws and guides, and remove the remote assembly door.
    G11246292Courtesy of SUBARU OF AMERICA, INC.
