Front Hood Lock Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct.

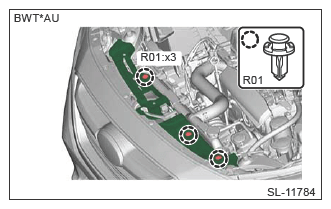

  3. Remove the clips, and remove the cover UPR front.
    G13953451Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts and remove the radiator upper bracket.
    G13953452Courtesy of SUBARU OF AMERICA, INC.

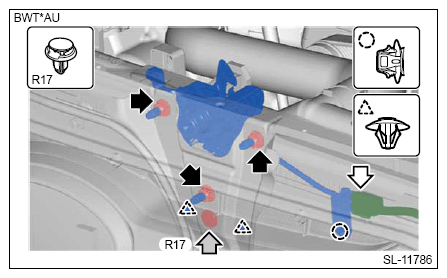

  5. Remove the lock assembly front hood.
    1. Disconnect the connector and connector clip.
    2. Remove the harness clips, nuts and clips, and remove the lock assembly front hood.
      NOTE: Push the condenser assembly and radiator toward the engine side to secure working space, then pull out the lock assembly front hood through the clearance.
      G13953453Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the cable assembly front hood from the guide.
    G13953454Courtesy of SUBARU OF AMERICA, INC.
