Hook Spring

Check the flat mat hook spring by applying weight to the backrest assembly.

NOTE: If the appropriate stiffness is not obtained by applying weight to the backrest assembly, the hook spring may be disengaged.
G13952286Courtesy of SUBARU OF AMERICA, INC.

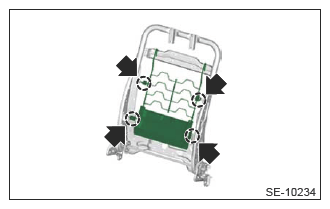

If it is due to the deformation of the hook spring, replace the flat mat and hook spring assembly with a new part.

G13952287Courtesy of SUBARU OF AMERICA, INC.
