Seat Ventilation Control Module

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front seat (passenger's seat). Ref. to SEATS>FRONT SEAT>REMOVAL .

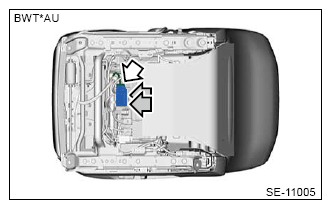

  3. Remove the seat ventilation control module.
    1. Disconnect the connector.
    2. Release the clips, and remove the seat ventilation control module.
    G13952346Courtesy of SUBARU OF AMERICA, INC.
