Glass Lid

Install the weather strip glass sunroof.

NOTE:

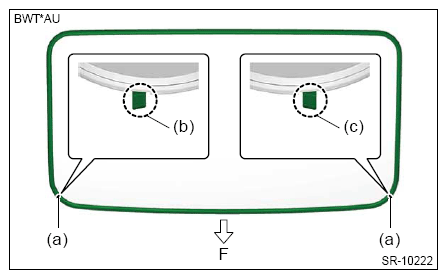

When installing, align the marking position (a) with the glass lid positions (b) and (c).
Do not press in the weather strip excessively with a hard object.
After installation, check that there is no warpage, gap or scratch.

G13625812

Courtesy of SUBARU OF AMERICA, INC.
