Glass Lid

Using a new TORX® screw, temporarily install the lid assembly.
Perform the open/close operation checks for the lid assembly.

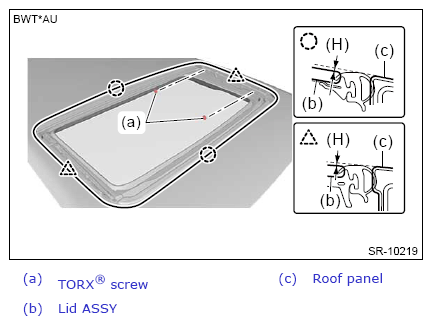

Tighten the screw to the specified torque using TORX® T25 while adjusting the height of the lid assembly to the standard value.
Specification:

Lid assembly to Roof panel (H): 0±1 mm (0±0.04 in)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

4 N.m (0.4 kgf-m, 3 ft-lb)
Install the cover lid.
