Front Disc Brake Assembly: Disassembly

CAUTION: Be careful not to allow foreign matter to enter the brake hose connector.
  1. Remove mud and foreign matter from the caliper body.
  2. Remove the piston disc brake.
    1. Place a wooden block in the caliper body as shown in the figure to prevent the piston disc brake from jumping out and being damaged.
    2. Using an air gun, gradually apply compressed air via the brake hose front installation hole to push out the piston disc brake.
    NOTE: Instead of removing the pistons one by one, remove all pistons at once after adjusting the amount of protrusion evenly using a wooden block.
    G13950075Courtesy of SUBARU OF AMERICA, INC.

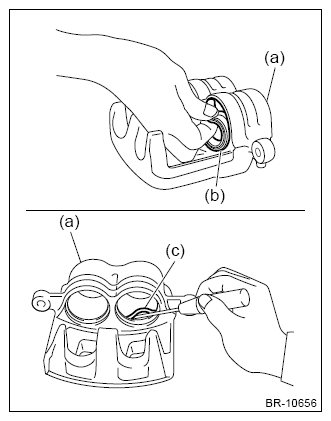

  3. Remove the boot piston (b) and piston seal (c) from the caliper body cylinder (a).
    CAUTION: Do not damage the cylinder and piston seal groove.
    G13950076Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the pin boot from the support front disc brake.
    G13950077Courtesy of SUBARU OF AMERICA, INC.
