Front Disc Brake Assembly: Removal

CAUTION:

Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.

Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

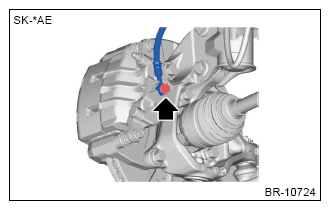

Remove the union bolt and brake hose front.

Courtesy of SUBARU OF AMERICA, INC.

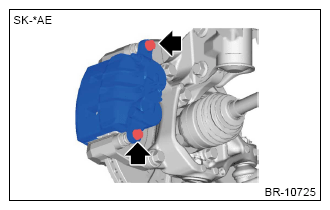

Remove the caliper bolt, and remove the caliper body.

Courtesy of SUBARU OF AMERICA, INC.

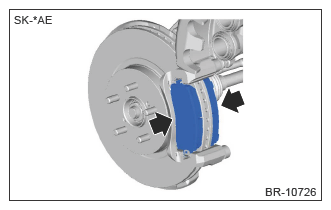

Remove the pad disc brake front.

Courtesy of SUBARU OF AMERICA, INC.

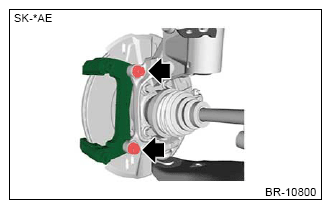

Remove the mounting bolts, and then remove the support front disc brake.

Courtesy of SUBARU OF AMERICA, INC.
