Rear Disc Brake

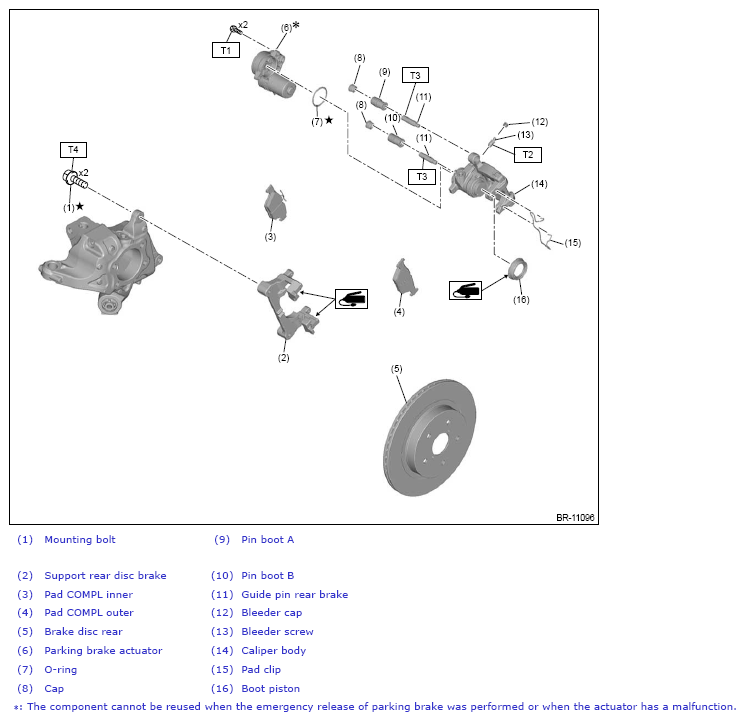

Fig 1: Rear Disc Brake Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 17 (1.7, 12.5)

T3: 25 (2.5, 18.4)

T4: 73 (7.4, 53.8)
