Rear Disc Brake Assembly: Assembly

NOTE: If the brake hose rear is disconnected, air enters inside. Therefore, this operation should be performed on the vehicle without disconnecting the brake hose rear.

Check each part. Ref. to BRAKE>REAR DISC BRAKE ASSEMBLY>INSPECTION .

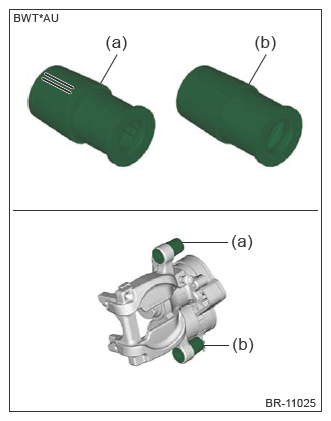

Install the pin boot.
NOTE: Place so that the pin boot A comes to the upper side and the pin boot B comes to the lower side when installed to the vehicle.

Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of grease to the inside of the new boot piston.
Preparation items:

Grease: NIPPON GREASE NIGLUBE RX-2 (item number: 000041000) or equivalent
Using the ST, install the boot piston.
Preparation tool:

ST: PISTON BOOT INSTALLER (99099AL000)

Courtesy of SUBARU OF AMERICA, INC.
