Rear Disc Brake Assembly: Disassembly

CAUTION:

• The piston disc brake cannot be removed from the caliper body.
• Do not remove the parking brake actuator except for the system error.

1. Remove mud and foreign matter from the caliper body.

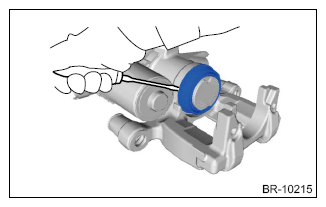

2. Remove the boot piston.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the pin boot from caliper body.

Courtesy of SUBARU OF AMERICA, INC.
