Horn Assembly Hi

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .
  3. Remove the horn assembly Hi.
    1. Disconnect the connector.
    2. Remove the bolt, and remove the horn assembly Hi.

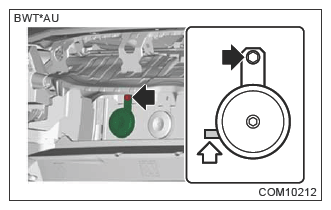

G13622944Courtesy of SUBARU OF AMERICA, INC.
