Active Grille Shutter: Installation

  1. Install the ambient sensor.

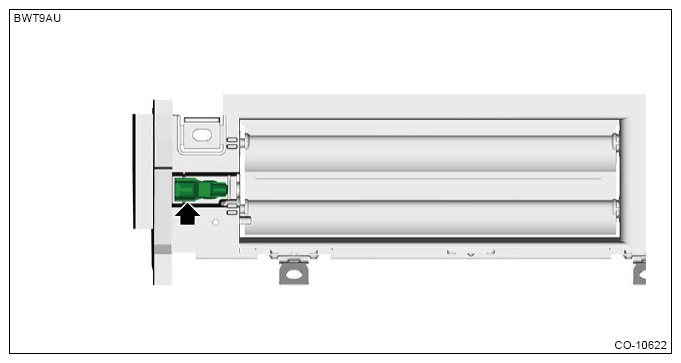

    G13619355Courtesy of SUBARU OF AMERICA, INC.
  2. Install the active grille shutter.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

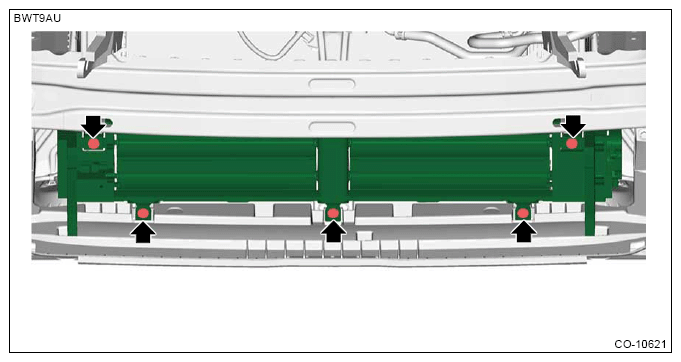

    G13619354Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the connector to the active grille shutter actuator.

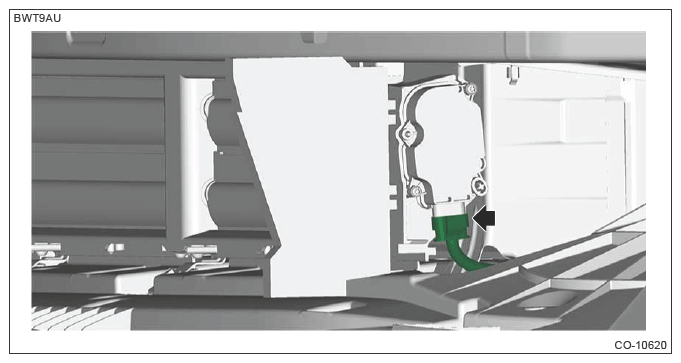

    G13619353Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the connector to the ambient sensor.

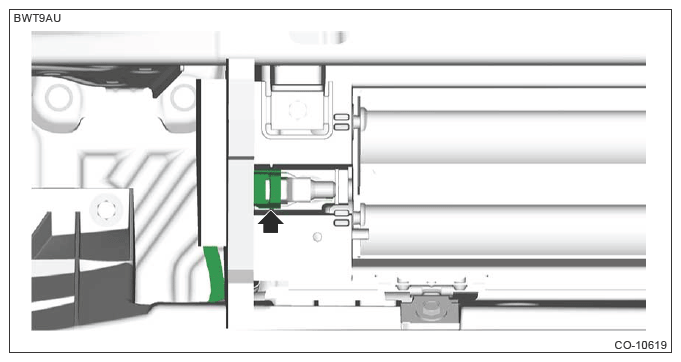

    G13619352Courtesy of SUBARU OF AMERICA, INC.
  5. Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION .
  6. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  7. When the active grille shutter has been replaced, perform the calibration (execute the system operation check for ACTGS control). Ref. to ENGINE (DIAGNOSTICS) (H4DO)>ACTIVE TEST .
