Air Cleaner Element: Removal

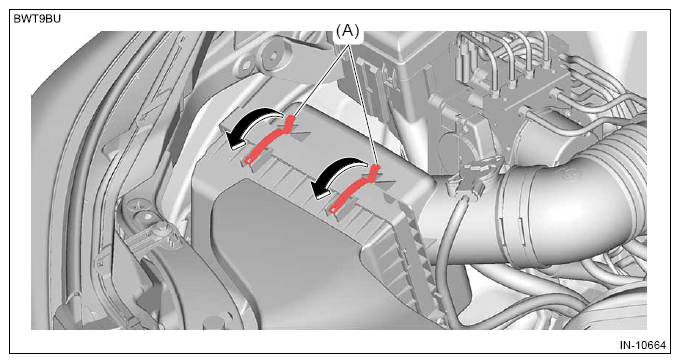

1. Release the clip (A) lock.

   Courtesy of SUBARU OF AMERICA, INC.

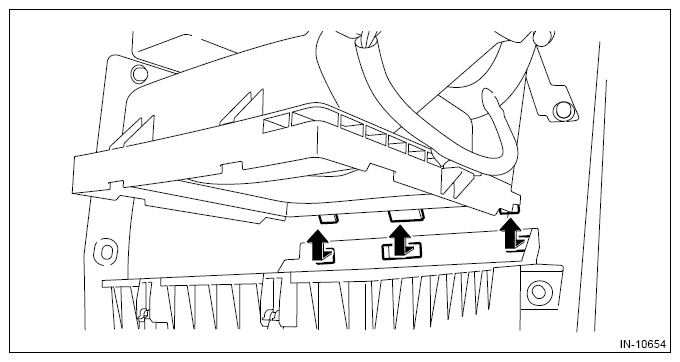

2. Lift the air cleaner case (rear), and disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).

   Courtesy of SUBARU OF AMERICA, INC.

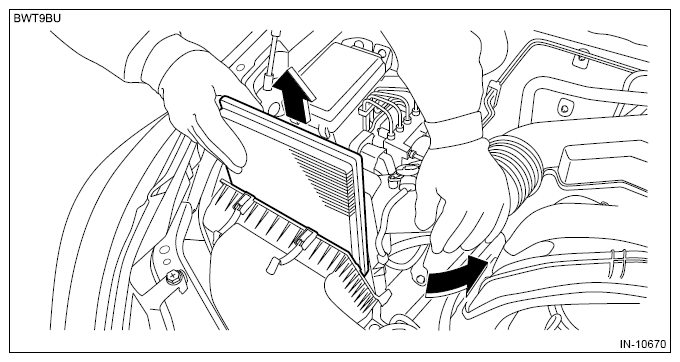

3. Remove the air cleaner element while pulling the air cleaner case (rear) as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.
