Home › Subaru › 2021 › Outback Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel Injection System (2.5L) › Oil Control Solenoid › Removal › Intake › • LH Side

• LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

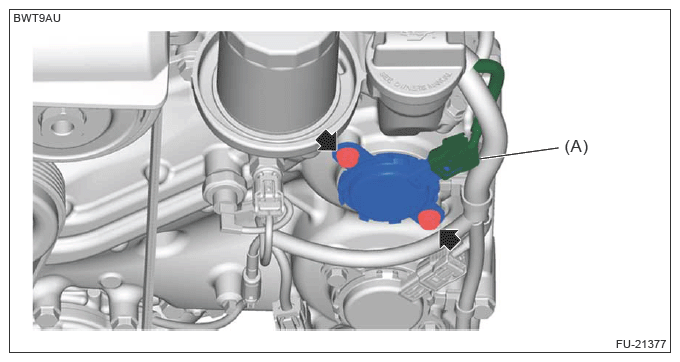

  2. Disconnect the connector (A) and remove the oil control solenoid.
    G13947200Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the backup ring from the oil control solenoid.
