Front Differential: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive pinion. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION>REMOVAL .

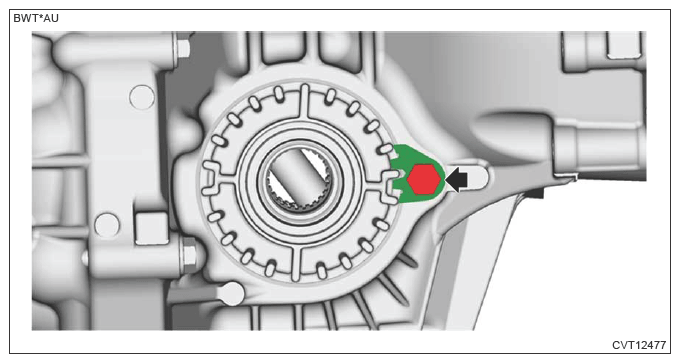

  2. Remove the lock plate.
    G13951431Courtesy of SUBARU OF AMERICA, INC.

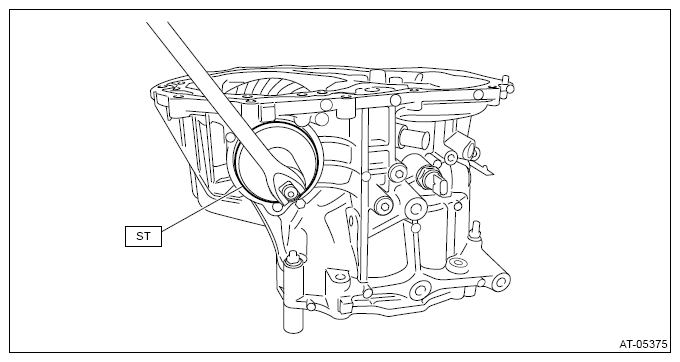

  3. Remove the differential side retainers using the ST.
    NOTE:
    • When the ST interferes with the converter case, align the cutout portion with the interference part.
    • Support the differential case by hand to avoid damaging the retainer mounting bolt hole of the converter case.
    • When there is no replacement of the side bearing inner race, do not confuse the left side and right side.

    Preparation tool:

    ST: WRENCH COMPL RETAINER (18658AA021)

    G13951432Courtesy of SUBARU OF AMERICA, INC.

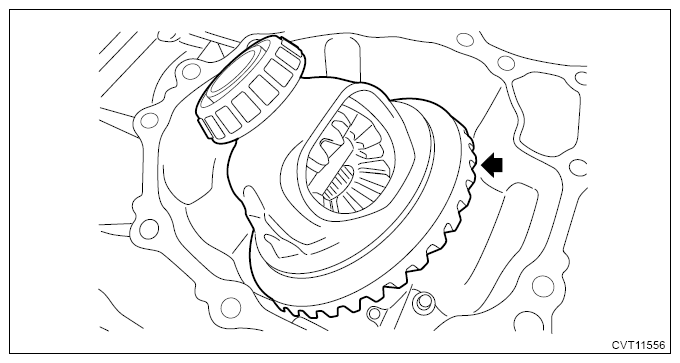

  4. Remove the differential case.
    CAUTION: Be careful not to damage the attachment section of the differential side retainer.
    G13951433Courtesy of SUBARU OF AMERICA, INC.

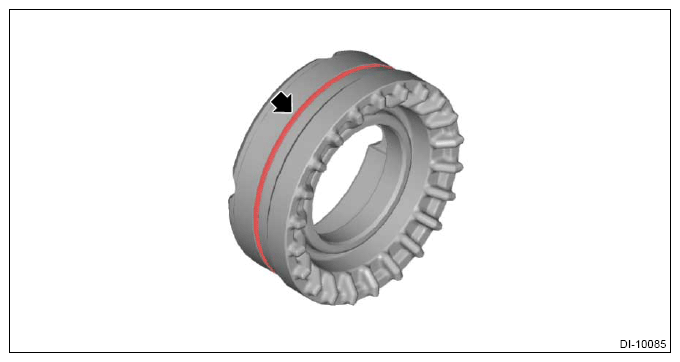

  5. Remove the O-rings.
G13951434Courtesy of SUBARU OF AMERICA, INC.
