Transmission Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .

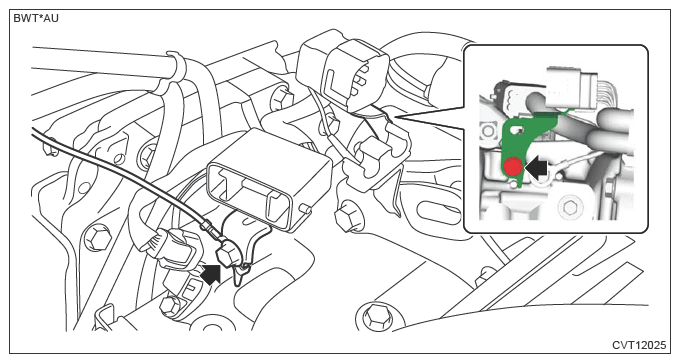

  2. Remove the ground cord and stay.
    G13951084Courtesy of SUBARU OF AMERICA, INC.

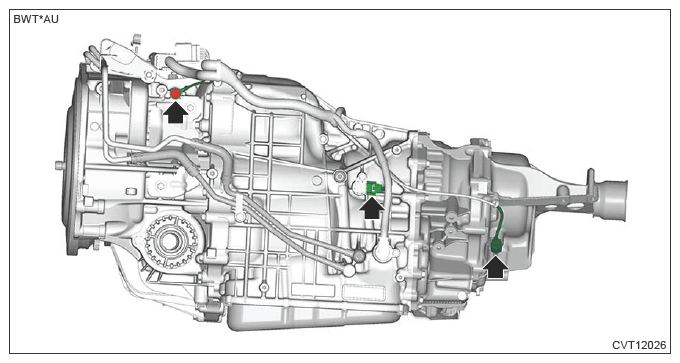

  3. Disconnect the ground terminal, and disconnect the connectors from the secondary speed sensor and front wheel speed sensor.
    G13951085Courtesy of SUBARU OF AMERICA, INC.

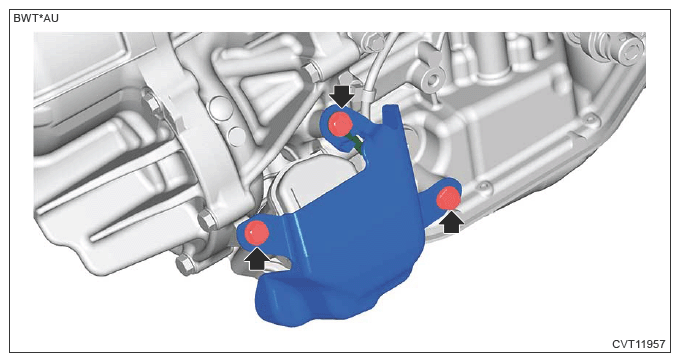

  4. Disconnect the ground terminal, and remove the electric oil pump cover.
    G13951086Courtesy of SUBARU OF AMERICA, INC.

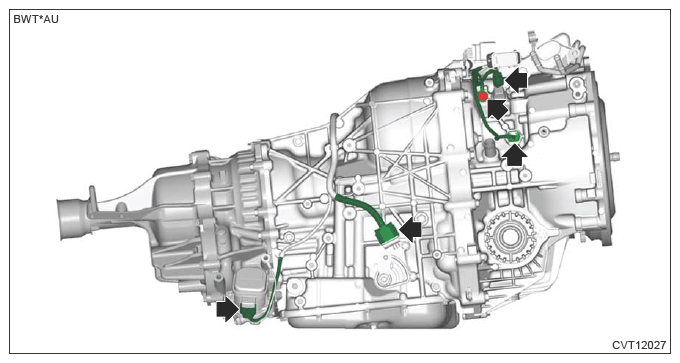

  5. Disconnect the ground terminal, and disconnect the connectors from the primary speed sensor, secondary pressure sensor, inhibitor switch and electric oil pump.
    G13951087Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL .

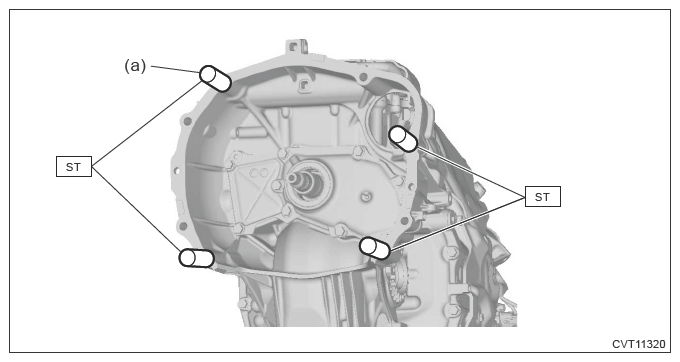

  7. Install the ST and place the transmission body.
    NOTE:
    • When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.
    • Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

    G13951088Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .

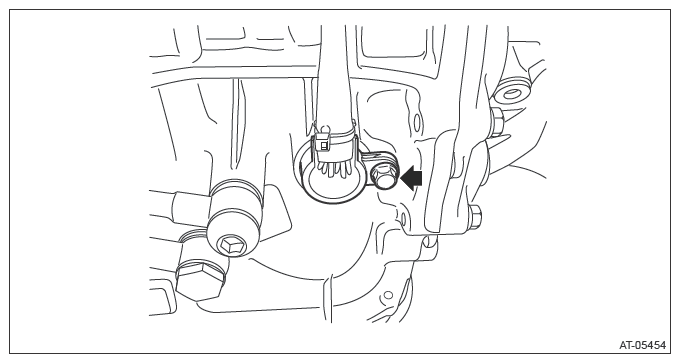

  9. Remove the bolt securing the transmission harness.
    G13951089Courtesy of SUBARU OF AMERICA, INC.

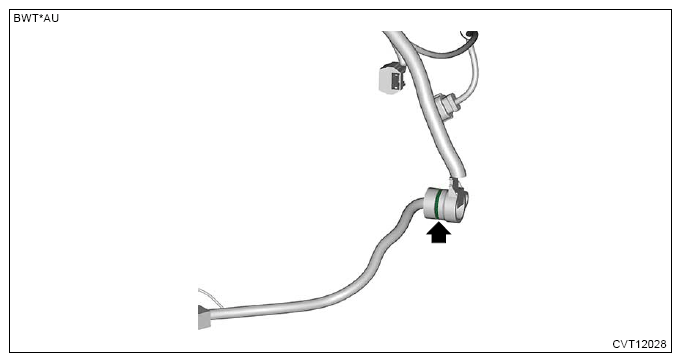

  10. Remove all clips and remove the transmission harness.
  11. Remove the O-rings.
G13951090Courtesy of SUBARU OF AMERICA, INC.
