Section 5 (Engine Intake System (Induction) And Turbocharger (2.4L)): Intercooler: Assembly
WARNING: This page is about a different variant/trim than selected.
- Temporarily install the intake duct No. 3 using a new gasket.

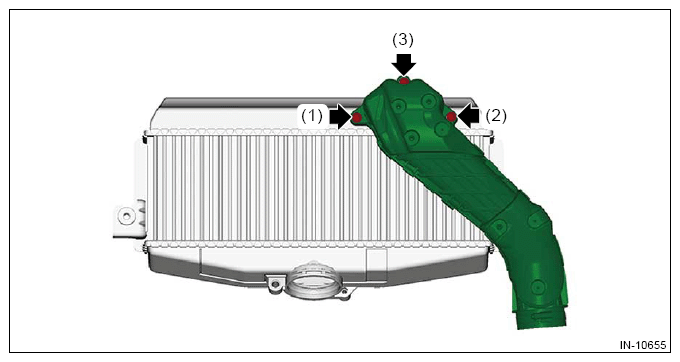

- Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:
16 N.m (1.6 kgf-m, 11.8 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
