Front Strut

Sedan model

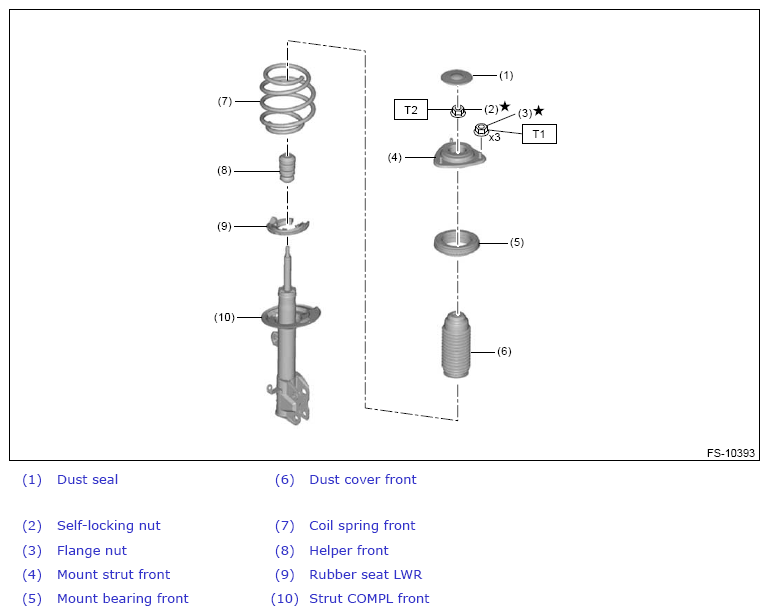

Fig 1: Front Strut Components (Sedan Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 32 (3.3, 23.6)

T2: 55 (5.6, 40.6)

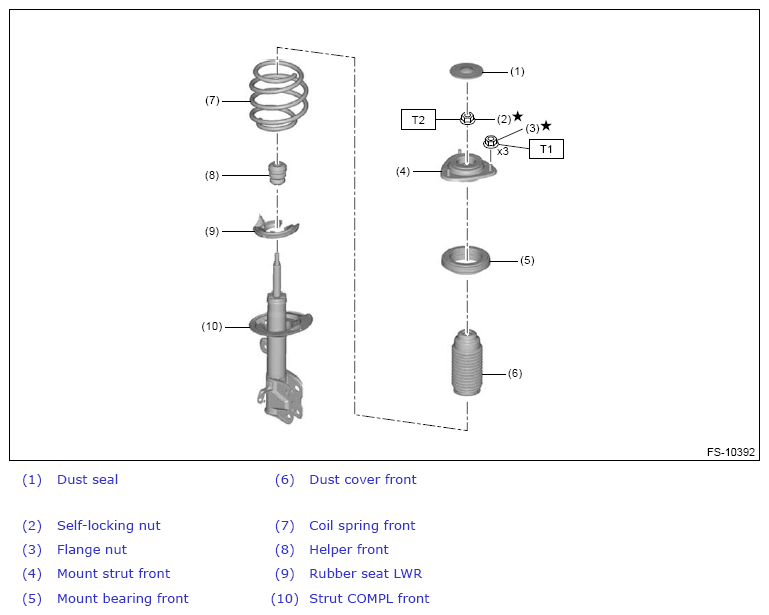

Fig 2: Front Strut Components (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 32 (3.3, 23.6)

T2: 55 (5.6, 40.6)
