CVTF Cooler (With Warmer Feature)

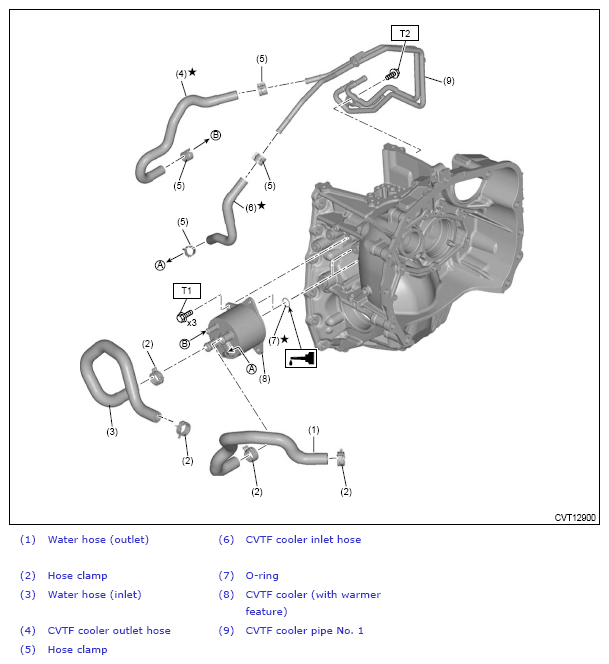

Fig 1: CVTF Cooler (With Warmer Feature) Components - Model Without CVTF Cooler (Air Cool)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 19 (1.9, 14.0)

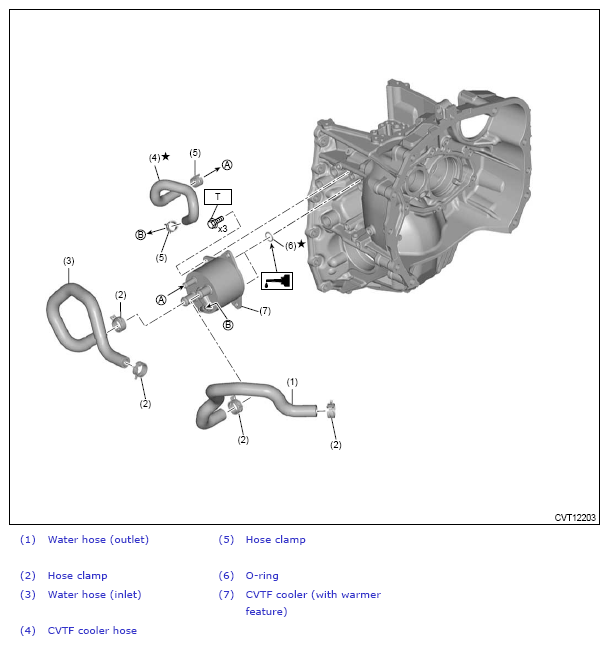

Fig 2: CVTF Cooler (With Warmer Feature) Components - Model With CVTF Cooler (Air Cool)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2: 35 (3.6, 25.8)
