When Removing The CROSSMEMBER COMPL Front

  1. Disconnect the ground terminal from battery sensor Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the crossmember COMPL front Ref. to FRONT SUSPENSION>CROSSMEMBER>REMOVAL .

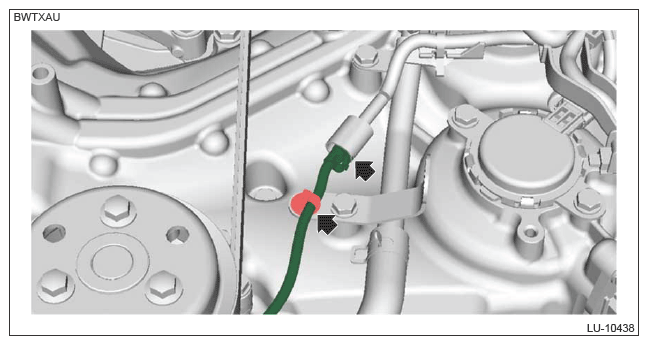

  3. Remove the clip holding the oil level switch harness and disconnect the connectors.
    G13949398Courtesy of SUBARU OF AMERICA, INC.

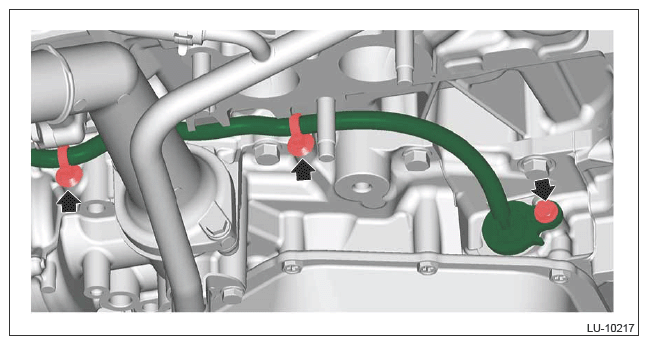

  4. Remove the clip securing the harness, and remove the oil level switch.
    G13949399Courtesy of SUBARU OF AMERICA, INC.
