• LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .

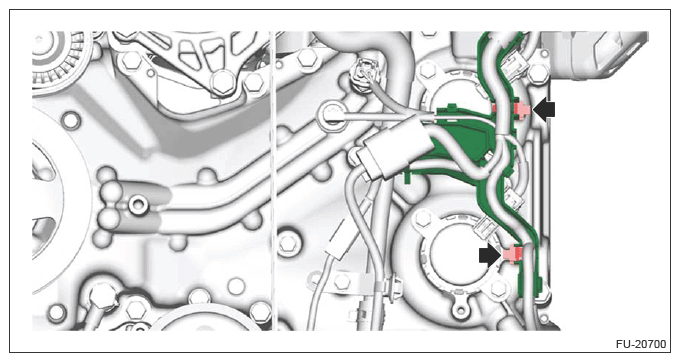

  3. Remove the clip securing the engine wiring harness.
    G13948378Courtesy of SUBARU OF AMERICA, INC.

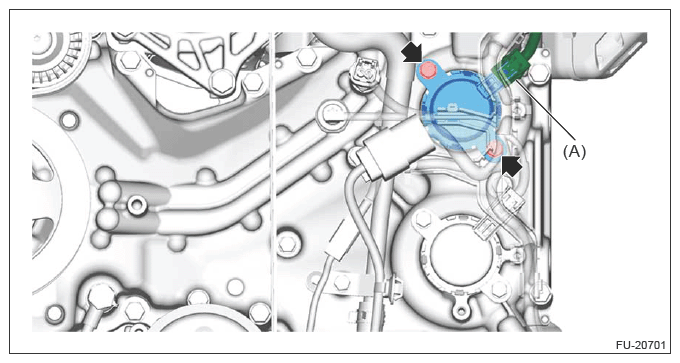

  4. Disconnect the connector (A) and remove the oil control solenoid.
    G13948379Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the backup ring from the oil control solenoid.
