Radiator And Radiator Fan

WARNING: This page is about a different variant/trim than selected.

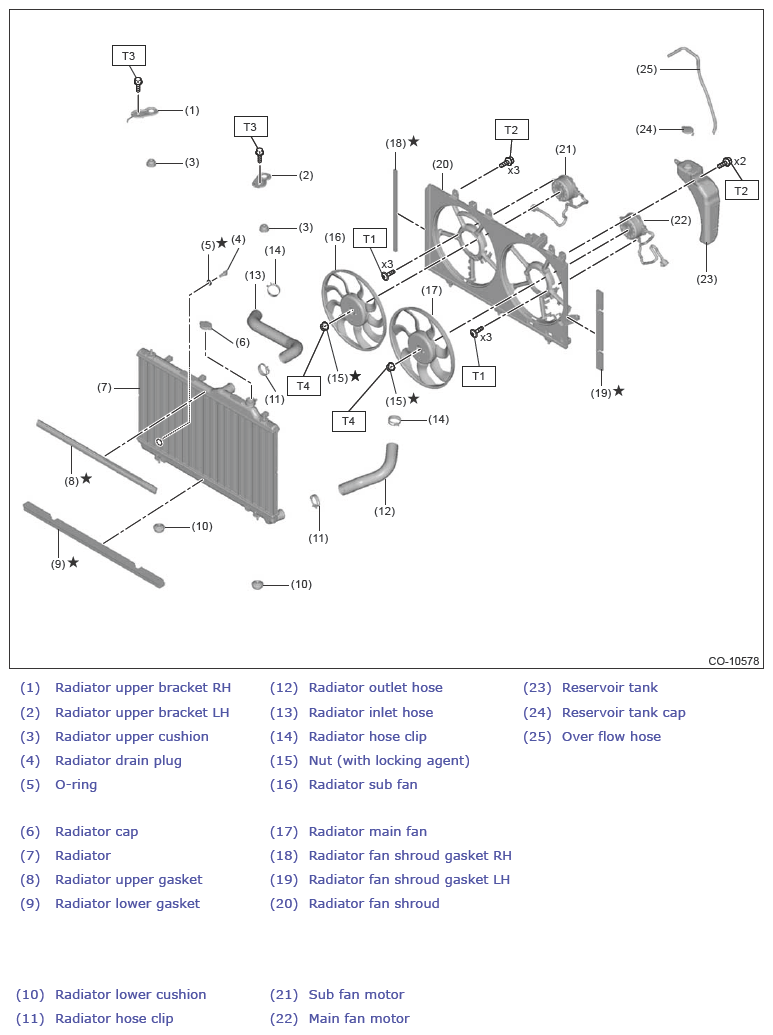

Fig 1: Exploded View Of Radiator And Radiator Fan Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4 (0.4, 3.0)

T2: 7.5 (0.8, 5.5)

T3: 12 (1.2, 8.9)
