Converter Case Cover: Assembly

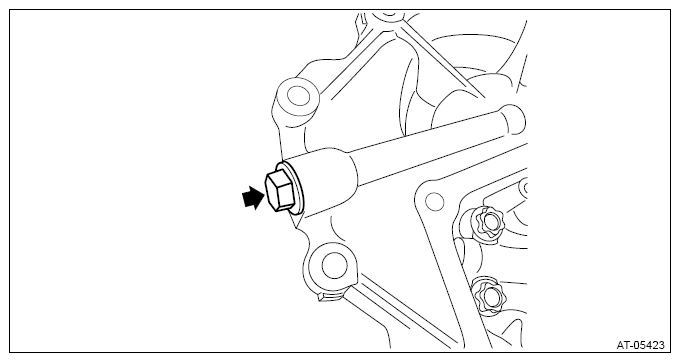

  1. Install the plugs with new O-rings.
    NOTE: Apply CVTF to the O-rings.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

G13951469Courtesy of SUBARU OF AMERICA, INC.
