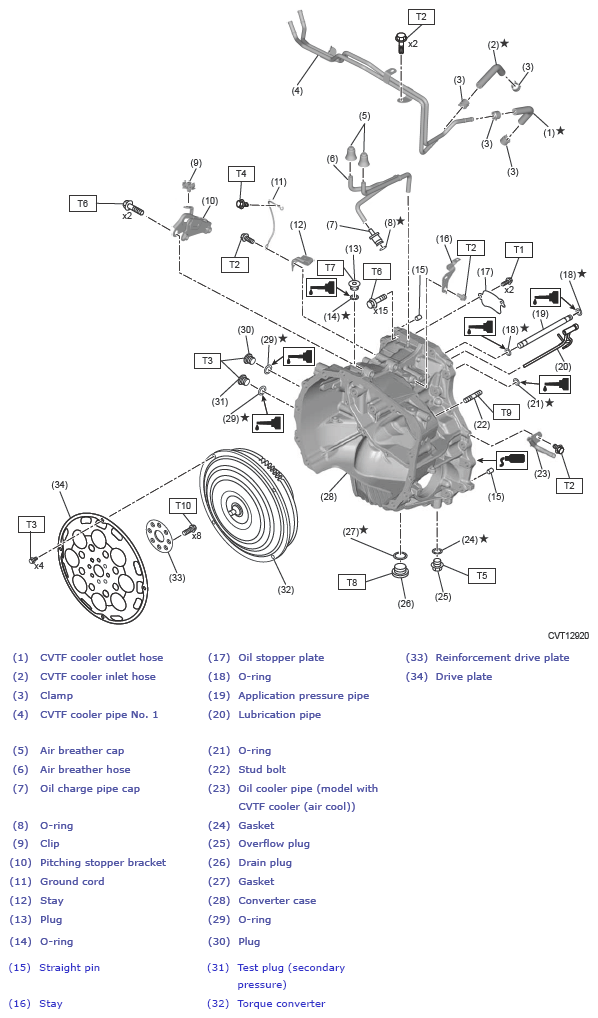

Torque Converter And Converter Case

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9 (0.9, 6.6)

T2: 16 (1.6, 11.8)

T3: 25 (2.5, 18.4)

T4: 32.3 (3.3, 23.8)

T5: 35 (3.6, 25.8)

T6: 41 (4.2, 30.2)

T7: 50 (5.1, 36.9)

T8: 70 (7.1, 51.6)

T9:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE>ASSEMBLY .

T10:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PLATE>INSTALLATION .
