Inhibitor Switch: Adjustment

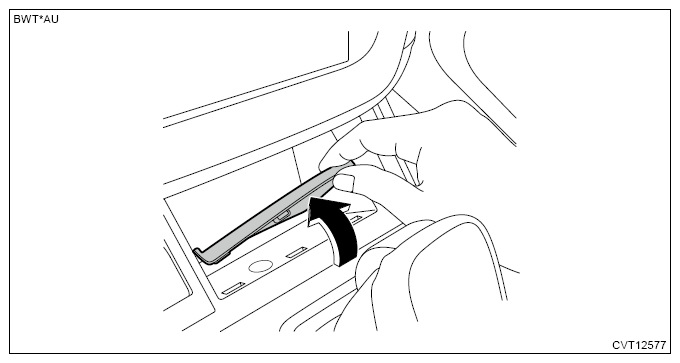

Remove the mat center tray.

Courtesy of SUBARU OF AMERICA, INC.

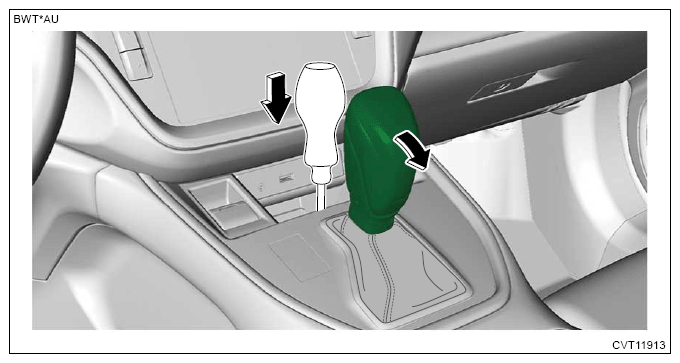

Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".

Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolts holding the inhibitor switch.

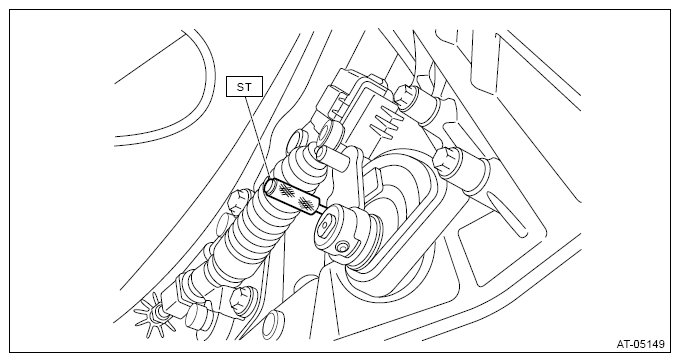

Insert the ST into the holes of the shifter arm and inhibitor switch.
NOTE: Set the parts so that the center points of the holes are aligned.

Preparation tool:

ST: STOPPER PIN (499267300)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
