Intermediate Case: Disassembly

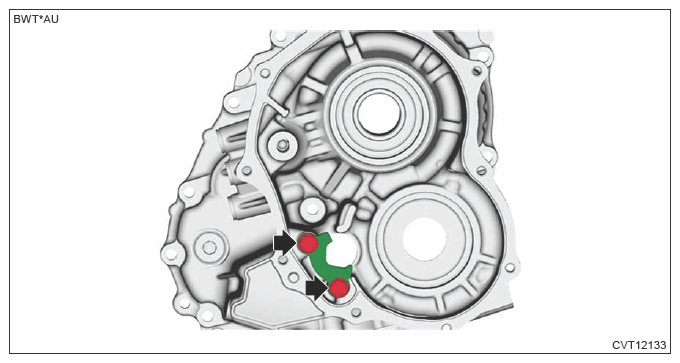

  1. Remove the parking support.
    G13951250Courtesy of SUBARU OF AMERICA, INC.

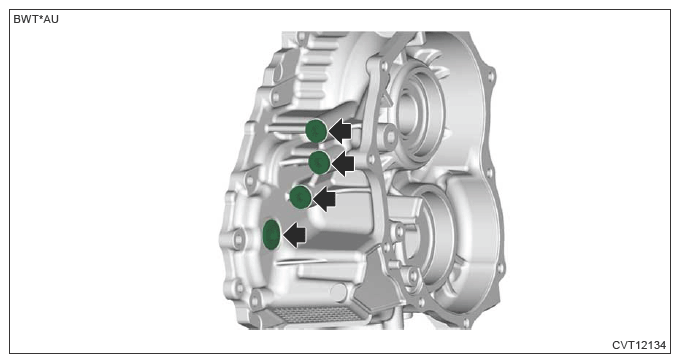

  2. Remove all plugs.
    G13951251Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REVERSE BRAKE>DISASSEMBLY .
