Reduction Driven Gear: Disassembly

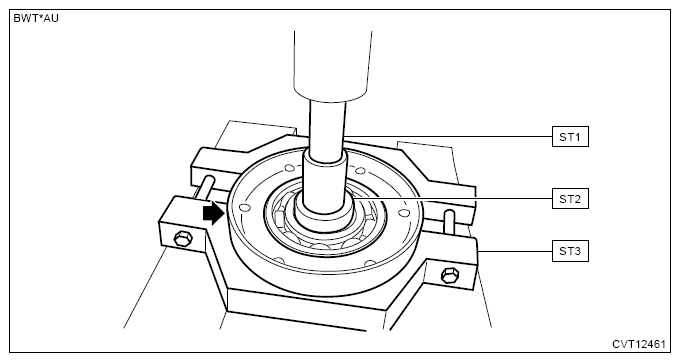

- Remove the bearing retainer using ST1, ST2, ST3 and a press.CAUTION: Be careful not to drop the reduction driven gear.
Preparation tool:
ST1: REMOVER (899864100)
ST2: SEAT (398497701)
ST3: BEARING REMOVER (18767AA000)
- Remove the ball bearing using ST1, ST2, ST3 and a press.CAUTION: Be careful not to drop the reduction driven gear.
Preparation tool:
ST1: REMOVER (899864100)
ST2: SEAT (398497701)
ST3: REMOVER (498077600)
