Main Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

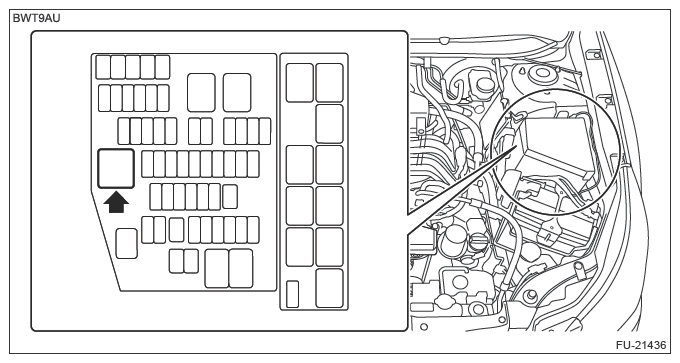

  2. Remove the main relay from main fuse box.
G13947234Courtesy of SUBARU OF AMERICA, INC.
