Battery Sensor: Removal

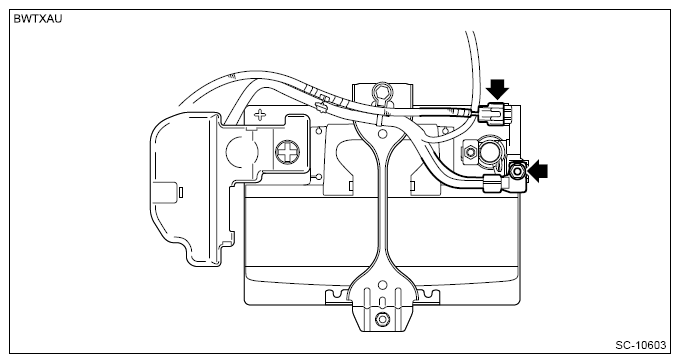

  1. Disconnect the connector and ground terminal.
    G13949490Courtesy of SUBARU OF AMERICA, INC.

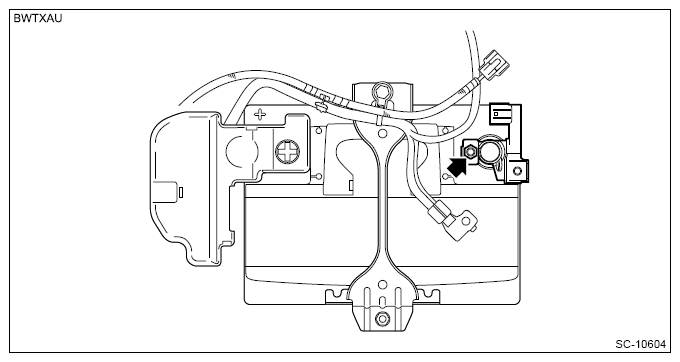

  2. Remove the battery sensor.
    CAUTION: The end of the bolt (a) of the battery sensor is crimped. Therefore, do not loosen the nut (b) to the crimped portion.
    G13949491Courtesy of SUBARU OF AMERICA, INC.
    G13949492Courtesy of SUBARU OF AMERICA, INC.
