Front Reduction Drive Gear: Removal

1. Remove the converter case cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE COVER>REMOVAL .

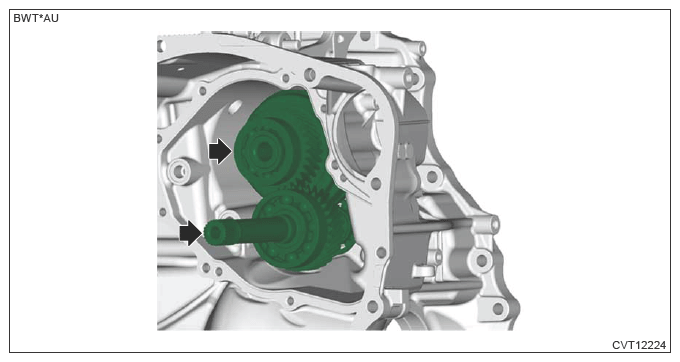

2. Remove the front reduction drive gear and front reduction driven gear as a single unit.
   NOTE: Remove the front reduction driven shaft while holding it.

   Courtesy of SUBARU OF AMERICA, INC.

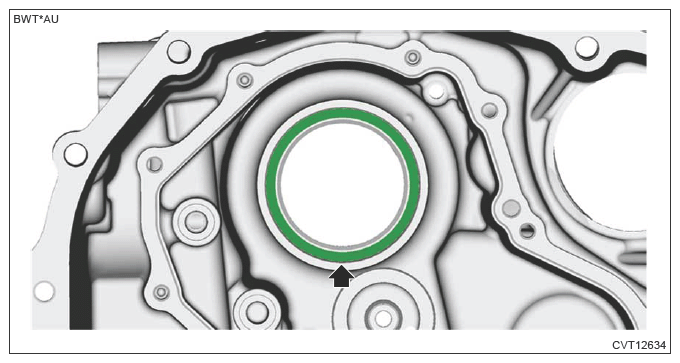

3. Remove the front reduction driven gear shim (rear side).

Courtesy of SUBARU OF AMERICA, INC.
