Telematics System (Diagnostics)
›
Control Module I/O Signal
›

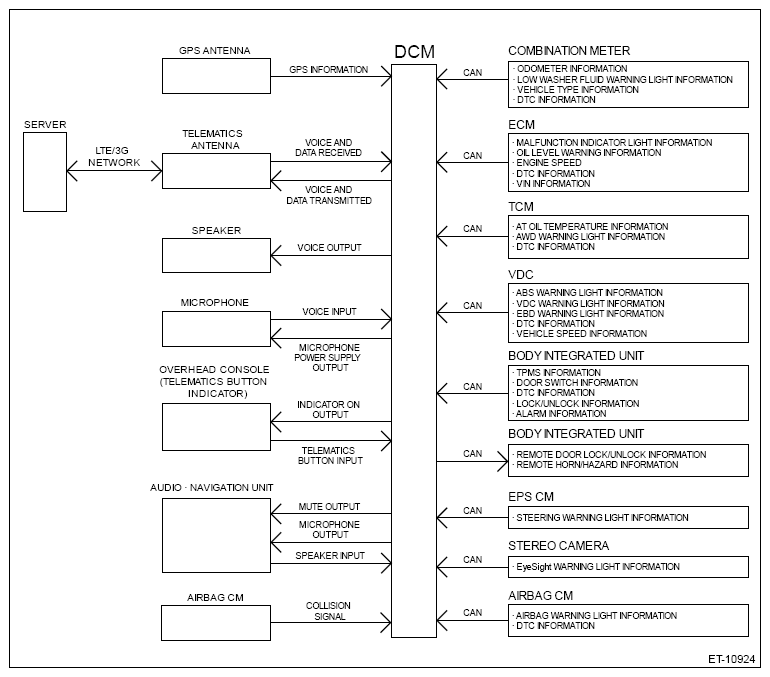

System Block Diagram
System Block Diagram
Main signals used between DCM and relevant CM
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
