Entertainment System: Camera: Removal: Rear

Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - trunk lid and garnish - trunk. Refer to EXTERIOR/INTERIOR TRIM>TRUNK LID GARNISH>REMOVAL .

Remove the rearview camera.

CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.

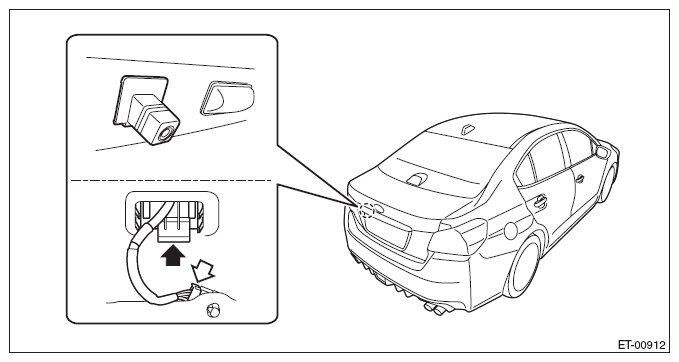

Disconnect the claws and hooks and remove the rear view camera.

Courtesy of SUBARU OF AMERICA, INC.
