Front Fog Light Assembly: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.

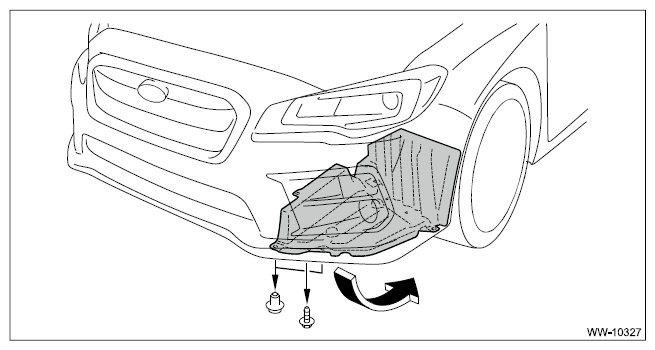

  3. Remove the screw and clips, and turn over the mud guard - front.
    G12455796Courtesy of SUBARU OF AMERICA, INC.

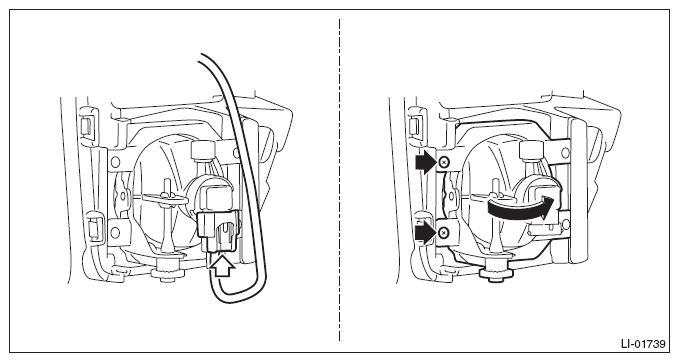

  4. Remove the fog light assembly - front.
    1. Disconnect the connector.
    2. Remove the screws and guide, and remove the fog light assembly - front.
      G10270706Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Remove the LED type in the same procedure.
