Front Turn Signal Light Assembly: Removal

NOTE: Front turn signal light assembly of the LED headlight is integrated into the headlight assembly. For operation procedures, refer to "Headlight Assembly". Refer to LIGHTING SYSTEM>HEADLIGHT ASSEMBLY .
  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

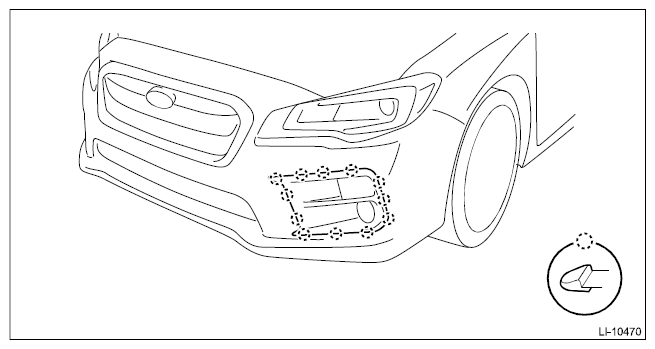

  2. Release the claws, and then remove the cover - fog light.
    NOTE: If it is hard to remove, push the claw from the back.
    G12455795Courtesy of SUBARU OF AMERICA, INC.
  3. Lift up the vehicle.
  4. Remove the screw and clips, and turn over the front side of the mud guard - front.
    G12455796Courtesy of SUBARU OF AMERICA, INC.

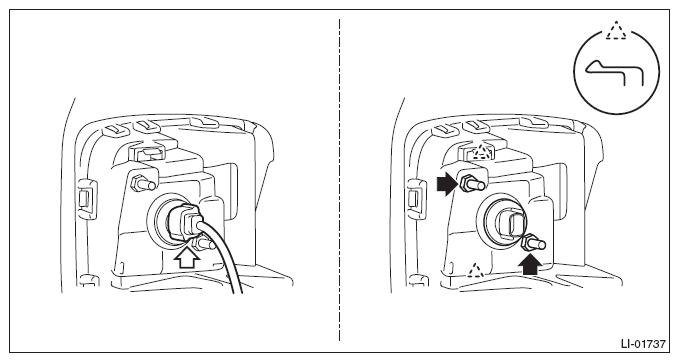

  5. Remove the turn signal light assembly - front.
    1. Disconnect the connector.
    2. Release the nuts and claws, then remove the turn signal light assembly - front.
      G10270700Courtesy of SUBARU OF AMERICA, INC.
