Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.

Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the clips and remove the air intake duct. (When removing the headlight RH)
- Except for STI model: Refer to INTAKE (INDUCTION) (W/O STI)>AIR INTAKE DUCT>REMOVAL .
- STI model: Refer to INTAKE (INDUCTION) (STI)>AIR INTAKE DUCT>REMOVAL .
Remove the bumper face - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
Remove the keyless buzzer or access buzzer. Refer to SECURITY AND LOCKS>KEYLESS BUZZER>REMOVAL .

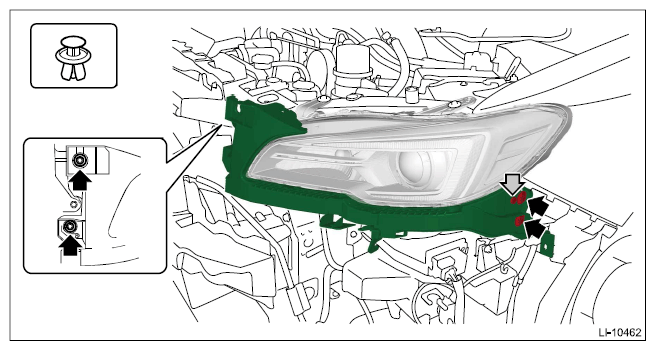

Remove the bolts and clips, and remove the bracket - front bumper corner.

Courtesy of SUBARU OF AMERICA, INC.

Remove the light assembly - head.

CAUTION: Be careful not to damage the light assembly - head and the fender front.

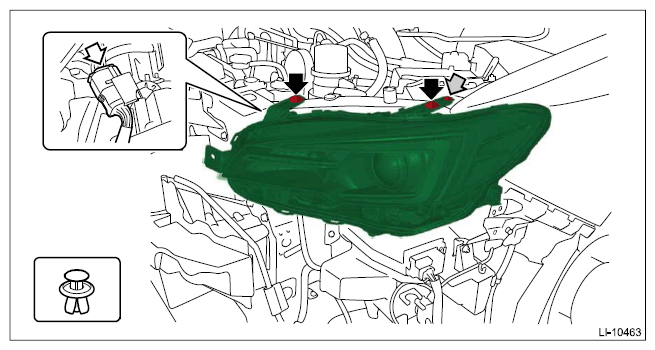

Remove the bolts and clips, and remove the light assembly - head.

Courtesy of SUBARU OF AMERICA, INC.
